PopCorn healthy production line with American Creators technology (concentrated hot air) without oil and salt 150 kg / hour
POPCORN PRODUCTION LINE C250
16739
Available product shapes
video
Full Automatic C150 Popcorn Production Line With Concord 14 V4 Project
Hot air healthy popcorn production line American technology
The method of making healthy popcorn on the latest production lines without oil and without salt with a flavoring mechanism and grafting with cheddar cheese
Natural popcorn production line 130 kg per hour American hot air system
Natural Popcorn Production Line 250 kg/h | Air-Popped, Oil-Free Industrial System
Specifications
STAFF
4 People
POWER
24 Kw
AREA
38 Sqm
CAPACITY
250 Kg
WOULD YOU LIKE TO RECEIVE A COMMERCIAL OFFER ?
Production Flow

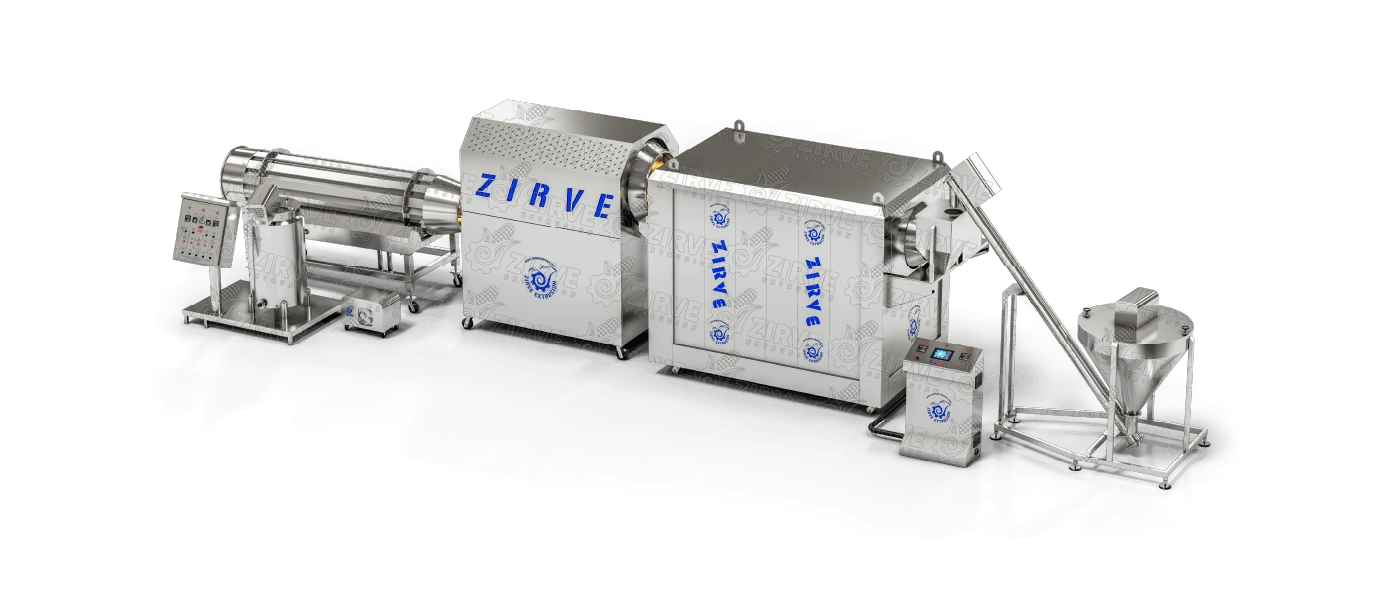

LINE PRODUCTION UNITS OVERVIEW
<p><strong>The process of making popcorn and blowing corn grains is done by hot air without oil </strong></p><p><strong>Exactly matching the American model CRETORS</strong></p><p><strong>Manufactured and equipped for continuous work 24/7</strong></p><p><strong>Length / 220 / cm, width / 100 / cm, height / 180 / cm.</strong></p><p><strong>Production capacity / 120 / to / 130/kg per hour,</strong></p><p><strong>The machine operates with open circuit system (continuous flow)</strong></p><p><strong>Equipped with Belgian screwdrivers, a precision control and calibration industry</strong></p><p><strong>Powered By LPG gas (on request)</strong></p><p><strong>It is equipped with Burners Italian ECOFLAM brand</strong></p><p><strong>Equipped with a / 12 / cm insulation layer of glass fiber over the whole structure area</strong></p><p><strong>Made entirely of / stainless steel 304 /.</strong></p><p><strong>Equipped with a main engine capacity of / 4 / hp / 3 / kW Turkish industry.</strong></p><p><strong>Equipped with a rotary engine capacity of 1 hp Turkish industry GAMAK brand with a Gearbox from the Italian company VARVEL.</strong></p><p><strong>Total capacity / 3 / kW / 380 / V / 50 / Hz</strong></p><p><strong>Equipped with a Stainless steel control panel, all control, protection and protection parts are supplied by SCHNEIDER brand France.</strong></p><p><strong>Features a touch control screen with Two languages English, Persian.</strong></p><p><strong>Equipped with / 2 / temperature clock, a Korean brand of AUTONICS precise tuning and calibration</strong></p><p><strong>Equipped with / 2 / air temperature sensors Italian industry</strong></p>
<p><strong>Length / 200 / cm, diameter / 80 / cm, width / 100 / cm</strong></p><p><strong>drum made of stainless steel perforated, allowing the passage of unexploded corn beads and assembled in a secondary tank carried by a strong structure made of stainless-steel profile</strong></p><p><strong>Equipped for work and rotation quickly proportional to the blast head</strong></p><p><strong>Equipped with a rotary engine capacity of 1 hp Turkish industry GAMAK brand with a Gearbox from the Italian company VARVEL</strong></p><p><strong>The sieve is equipped with a cooling mechanism by compressed air model Italian</strong></p><p></p>
<p><strong>Function: mixing the chips grains with flavor and oil</strong></p><p><strong>Length : / 3 /m</strong></p><p><strong>outer diameter / 85 /cm.</strong></p><p><strong>Made of (stainless steel 304) </strong></p><p><strong> (The Engine ) : from company) GAMAK- TURKEY)<br> (Gearbox) : from company (VARVEL-ITALY)</strong></p><p><strong>The seasoning speed is controlled electronically by an inverter / 1.5 / kW – LS brand.</strong></p><p><strong>The process of the scales is designed so as to prevent the accumulation and the agglomeration of the flavor </strong></p><p><strong>It can automatically calibrate the sloping to control the time of the chips that passes inside.</strong></p><p><strong>It is equipped with the following:</strong></p><p> <strong>It is equipped with a flavor sprayer – an advanced American model which can be calibrated.</strong></p><p> <strong>a chrome cover by the exit side of the material; it can be opened and closed for easy cleaning.</strong></p><p> <strong>a chrome cover by the exit side of the material; it can be opened and closed for easy cleaning.</strong></p>
<p><strong>Function: sucking the oil and flavor from the mixers and pump them into the flavoring machine</strong></p><p><strong>AMERICAN MODEL:<br>Made of: (Stainless Steel 304)<br>(Gearbox) : (VARVEL-ITALY)<br></strong></p><p><strong>It is equipped with the following</strong></p><p><strong>(Integrated Gearbox Motor) connected with a pump mad of .of solid European aluminum.</strong></p><p><strong>The connection is done by coupling rubber for easy maintenance and cleaning.</strong></p><p><strong>Silicone food hose – made in Spain.</strong></p><p><strong>The amount of flavor or taste is controlled electronically by control panel and inverter the (LS -KOREA) </strong></p><p><strong>Wheels and Carrier platform made of (Stainless Steel 304).</strong></p>
<p><strong>Number of mixers is / 1 /</strong></p><p><strong>Function: mixing oil and flavor and spraying it by the pump</strong></p><p><strong>The capacity of mixer is /200/ kg.</strong></p><p><strong>Made of (Stainless Steel 304) :</strong></p><p><strong>( The Engine ) : (GAMAK-TURKEY)</strong></p><p><strong>(Gearbox) : ( VARVEL-ITALY)</strong></p><p><strong>Shape: Concave cylindrical tank for easy cleaning</strong></p><p><strong>It is equipped with the following:</strong></p><p><strong>Double-jacketed for indirect heating.</strong></p><p><strong>Heat clock to control hot water temperature in blenders.</strong></p><p><strong>Mixers are installed on a solid base made of (Stainless Steel 304) Hot water level indicator inside.</strong></p><p><strong>It is equipped with wheels for easy movement and cleaning.</strong></p><p><strong>The oil mixer floor is designed in concave form for easy cleaning.</strong></p>
Dimensions
