STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

12047

More Details main products Specifications request quotation

zirve international

zirve international

zirve international

Specifications model 3D More Details

Available product shapes

STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

STUFFED CORN CHIPS PRODUCTION LINE LCK160-E

zirve international

Specifications

zirve international

STAFF

4 people

zirve international

POWER

91 Kw

zirve international

AREA

75 Sqm

zirve international

CAPACITY

160 Kg

zirve international

zirve international

zirve international

zirve international

zirve international

zirve international

zirve international

WOULD YOU LIKE TO RECEIVE A COMMERCIAL OFFER ?

PRODUCTION LINE OVERVIEW

LINE PRODUCTION UNITS OVERVIEW

CORN MOISTRIZING MIXER | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

CORN MOISTRIZING MIXER

<p><strong>Function: mixing and moistening the corns Mixer</strong></p><p><strong>capacity: 300 kg</strong></p><p><strong>Made of : ( Stainless Steel 304)</strong></p><p><strong>(The Engine) :4 HP from company (GAMAK-TURKEY )</strong></p><p><strong>It is equipped with the following:</strong></p><p><strong>Water tank to control corn moisture with level indicator.</strong></p><p><strong>Standard discharge slot.</strong></p><p><strong>magnetic mechanism to remove the metal impurities, if found inside the corn.</strong></p><p><strong>Mechanical systems for safety and security.</strong></p><p><strong>Security and safety electrical equipment that insure stop working while cleaning and maintenance..</strong></p>

details

SPIRAL FEEDER | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

SPIRAL FEEDER

<p><strong>Function: transport material from the mixer to the extruder.<br>It is composed of tank capacity / 75 / kg.<br>Made of (Stainless Steel 304) thickness /2/. <br>(The Engine) : (GAMAK-TURKEY (.<br>Total capacity /0.75/ kw /380/ V /50 – 60 / Hz.</strong></p><p><strong>(Gearbox) : (VARVEL – ITALY).</strong></p><p><strong>It is equipped with the following:</strong></p><p><strong>A cleaning slot at the bottom.</strong></p><p><strong>Automatic protection system.</strong></p><p><strong>magnetic mechanism to remove the metal impurities.</strong></p>

details

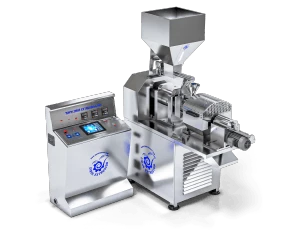

EXTRUDER | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

EXTRUDER

<p><strong>Function: blowing and forming the grain depending on the required shape.</strong></p><p><strong>Model: AMERICAN EXTRUSION</strong></p><p><strong>Production capacity is from / 175 / to / 200 / kg per hour</strong></p><p><strong>The structure is made of thermally coated iron and covered with plates made of (Stainless Steel) thickness 2 mm • (Bearings) from company SKF-SWEDEN )</strong></p><p><strong>(Inhibitor) from company (SKF-SWEDEN )</strong></p><p><strong>( The Engine ) from company NERIMOTORI-ITALY or GAMAK-TURKEY</strong></p><p><strong>(Invertor) from company (LS-S KOREA to control the speed of the main engine</strong></p><p><strong>Provided by material tank made of (Stainless Steel 304) With level control sensors</strong></p><p><strong>It is equipped with a main helix to feed the material pressure helix controlled inverter from company (LS-S KOREA)</strong></p><p><strong>All extruders are electronically controlled by 3 (inverters) from company (LS-S KOREA)</strong></p><p><strong>The length of a piece of chips is controlled by an electronically variable speed knife (Invertor)from company (LS -S KOREA) .</strong></p><p><strong>All extruder operations are controlled by a main control panel with a special hot venting system made of</strong></p><p><strong>(Stainless Steel) with wheels for easy movement</strong></p><p><strong>Multi-speed cutter to control the chips length with a (Korean - inverter LS) brand</strong></p><p><strong>Equipped with a Turkish heater that control the temperature by a precise temperature clock from a</strong></p><p><strong>company(AUTONICS-S KOREA)</strong></p><p><strong>Helix feeders are made from the finest metals and processed with the latest thermal furnaces (vacuum furnace technology).</strong></p><p><strong>The extruder is equipped with a cooling mechanism by water (closed circuit) American Extrusion ITALYAN Model</strong></p><p><strong>Equipped with a cooling air set ITALYAN MODEL.</strong></p><p><strong>separate control panel equipped with air vents and filters French (SCHNEIDER) brand and (Korean -LS- brand) with electronic and electrical protection.</strong></p><p><strong>The control panel is tightly isolated for preventing dust from entering.</strong></p><p><strong>The control panel is equipped with a 12-inch color touch screen (LS) with three languages on demand to fully control the mechanism of the line of chips.</strong></p><p><strong>A detailed power scheme Attached with the control panel</strong></p>

details

SINGLE PASS DRYING OVEN | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

SINGLE PASS DRYING OVEN

<p><strong>Function: roasting and drying the wet of chips corns completely, using hot air (American Extrusion System).</strong></p><p><strong> </strong></p><p><strong>Production capacity: /200/ - /500/ kg.</strong></p><p><strong> </strong></p><p><strong>It can  operate on diesel or gas LPG or as required.</strong></p><p><strong> </strong></p><p><strong>Made of: (Stainless Steel 304)</strong></p><p><strong>( The Engine ) : (GAMAK- TURKEY)</strong></p><p><strong> (Gearbox) : )VARVEL-ITALY(</strong></p><p><strong>(Burner) :  ( ECOFLAM - ITALY ) </strong></p><p><strong>(Electrical Parts)  : (SCHNEIDER-FRANCE)  (LS-S KOREA)</strong></p><p><strong> </strong></p><p><strong>Length: /6 / m Width:/1.5/ m</strong></p><p><strong>The width of the conveyor line carrying the pieces of chips is / 1 / m. It is equipped with the following:</strong></p><p> <strong>Automatic cleaning mechanism for the mesh bearing the pieces of chips .</strong></p><p><strong>(LS – KOREA) (inverter) to control the speed of the mesh bearing the pieces of chips.</strong></p><p> <strong>Automatic heat and programmable thermometers (quantity -2).</strong></p><p> <strong>Heating chamber that can be dismantled and installed for maintenance. </strong></p><p><strong>It is made of (Stainless Steel304) and designed to withstand temperatures up to / 800 / degrees.</strong></p>

details

CHOCOLATE COOKING TANK | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

CHOCOLATE COOKING TANK

<p><strong>Function: grinding the chocolate</strong></p><p><strong>The mixer is made of  double jacket  and the heating process is done by hot water that  heated by electric heaters<br>Made of (stainless Steel 304)  <br>(The Engine) 10 /HP/   (GAMAK-TURKEY)<br>/8/mm internal thickness<br>/4/mm external thickness<br>/15/mm internal floor thickness.</strong></p><p><strong><br>It is equipped with:</strong></p><p><strong>Speed pump to rotate the water in the double jacket.</strong></p><p><strong>Legs made with (stainless steel 304) , height /35/cm</strong></p><p><strong>Heater device electronically controlled by heater thermostat.</strong></p><p> <strong>Pump to rotate the chocolate up to down to make the grinding quality better, equipped with double jacket for the rotation of the hot water</strong></p><p> <strong>Pump made of (Stainless Steel 304)  </strong></p><p> <strong>Metal balls located inside the blender to grind the chocolate, weight /250kg/ , diameter /7-8mm/</strong></p><p> <strong>Control panel for turning ON / OFF and temperature control, made of (Stainless Steel 304)  </strong></p>

details

BUTTER MELTING TANK | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

BUTTER MELTING TANK

<p><strong>The mixer is made of double jacket and the heating process is done by hot water that heated by electric heaters<br>Made of (stainless Steel 304)  <br>(The Engine) 2 /HP/ GAMAK-TURKEY)<br>/4/mm internal thickness<br> /4/mm external thickness<br>/4/mm internal floor thickness.</strong></p><p><strong> </strong></p><p><strong>It is equipped with the following:</strong></p><p><strong>speed pump to rotate the water the double jacket</strong></p><p><strong>Legs made of (Stainless Steel 304) Height /35/</strong></p><p><strong>Electric heaters control the temperature electronically.</strong></p><p><strong>All the pipes related to the pump are made of (Stainless Steel 304)  </strong></p><p><strong>Electrical panel made of (Stainless Steel 304)  </strong></p><p><strong>Control panel for turning ON / OFF and temperature control, made of (Stainless Steel 304)</strong></p>

details

STUFFING MIXER TANK | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

STUFFING MIXER TANK

<p><strong>The mixer is made of double jacket and the heating process is done by hot water that heated by electric heaters<br>Made of (stainless Steel 304)  <br>(The Engine) 3 /HP/ from company  (GAMAK-TURKEY)<br>/4/mm internal thickness<br> /4/mm external thickness<br>/6/mm internal floor thickness.</strong></p><p><strong>It is equipped with the following:</strong></p><p><strong>speed pump to rotate the water the double jacket</strong></p><p><strong>Legs made of (Stainless Steel 304) Height /35/</strong></p><p><strong>Electric heaters control the temperature electronically.</strong></p><p><strong>All the pipes related to the pump are made of (Stainless Steel 304)  </strong></p><p><strong>Electrical panel made of (Stainless Steel 304)  </strong></p><p><strong> </strong></p>

details

SMALL CONVEYOR | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

SMALL CONVEYOR

<p><strong>Function: Transfer the material from the Extruder to the oven</strong></p><p><strong> Made of: (Stainless Steel 304) thickness 2 </strong></p><p><strong>(The Engine) : (GAMAK- TURKEY)</strong></p>

details

PILLOW STUFFED CORN CUTTER (OPTION) | STUFFED CORN CHIPS PRODUCTION LINE LCK160-E |

PILLOW STUFFED CORN CUTTER (OPTION)

<p><strong>Material it is made of:(Stainless Steel 304)</strong></p><p><strong>The Engine: Equipped with three engines of Turkish origin</strong></p><p><strong>Production capacity: 160 kg/hour</strong></p><p><strong>The slicer is equipped with:</strong></p><p><strong>Equipped with an electrical control panel containing all the necessary protections and breakers from the company: (SCHNEIDER-FRANCE)</strong></p><p><strong>Equipped with wheels for easy movement.</strong></p>

details

Dimensions
